Releases

Campus RAG Assistant follows a main → qa → release promotion ladder with annotated tags and GitHub Releases on the release branch tip. See RELEASE.md for the promotion process; CHANGELOG.md for fine-grained per-PR detail.

Tag Date Highlights
v3.0.0 2026-05-31 Bounded helpdesk agent (backend + Vue), v3 architecture, full reviewer-docs refresh, operations manual, Azure retrieval parity
v2.0 2026-05-19 Vue SPA, multicloud providers, LangGraph RAG, RAGAS baseline, GitHub Actions CI/CD
v1.0 2024 (upstream fork point) Initial fork of UC Berkeley ETS chabot — Streamlit + FastAPI + LangChain

GitHub Releases (with attached release notes and tagged commit): v1.0 · v2.0 · v3.0.0

v3.0.0 — Helpdesk agent + docs refresh

Tag: v3.0.0 · Date: 2026-05-31

Ships the bounded helpdesk agent end-to-end (backend LangGraph + Vue Ask/Agent mode + HITL ticket filing), refreshes all documentation with v3 architecture diagrams, agent UI screenshots, and versioned asset layout, and completes a full reviewer-docs refresh pass — releases hub, operations manual, Architecture/Design refresh with Azure retrieval parity, and aligned reviewer introductions across README, docs landing, Reviewer Guide, and Case Study.

Helpdesk agent (backend)

  • LangGraph agent endpoints — /api/helpdesk/agent/{start,resume,confirm,abort} + SSE streams
  • Supervisor + specialists — clarifier, classifier, writer, solution nodes with bounded tool budgets (supervisor routing is deterministic in this release; LLM supervisor is the target — see AGENTIC_HELPDESK_REBUILD.md)
  • Agent tools — KB retry, web search, GitHub-issue search, HITL-gated file-ticket
  • SQLite checkpointing — multi-turn session persistence across clarifying questions
  • Durable chat persistence — one assistant bubble per agent journey with activity trace
  • Observability — chatbot_helpdesk_agent_* Prometheus metrics + LangSmith tracing

Helpdesk agent (frontend)

  • Ask / Agent mode toggle — independent chat modes with mode-specific input placeholders
  • Activity timeline — multi-step agent trace rendered in a single assistant bubble
  • HITL flows — radio/pill clarifying questions, outcome chips, ticket review modal with redaction warning
  • Design tokens v2 — rebuilt light/dark palettes, sidebar recency grouping, always-visible copy button

Documentation & assets

  • v3 architecture diagrams — overview, detailed, and full topology (RAG + agent subgraphs)
  • v3 product screenshots — agent mode, HITL questions, ticket draft, GitHub Issues
  • Versioned asset layout — docs/assets/{architecture,product,auth}/{v1,v2,v3}/
  • Agentic rebuild roadmap — AGENTIC_HELPDESK_REBUILD.md for LLM-driven supervisor migration
  • Release notes — high-level summaries for v1.0, v2.0, and v3.0.0 (this page)

Documentation refresh pass (PRs #50–#57)

A six-PR docs consolidation that reorganized reviewer-facing material around portfolio value and current system state instead of changelog-style history.

  • Releases hub (#50) — single canonical docs/release-notes/index.md (this page) covers v1.0/v2.0/v3.0.0; duplicate docs/README.md removed.
  • Helpdesk shipped-vs-target (#51) — ADR-006 records the LLM supervisor migration; docs/helpdesk/index.md adds a clear shipped-vs-target table so the deterministic supervisor and bounded specialists are not over-claimed.
  • Architecture + Design refresh (#52) — ARCHITECTURE.md and DESIGN.md show full current state with collapsed v1/v2 history; LANGGRAPH + WEB_RESEARCH content folded into DESIGN; the helpdesk agent flow is promoted next to the RAG flow; Azure retrieval documented in parity with AWS Bedrock KB (Azure AI Search hybrid path: AzureOpenAIEmbeddings → AzureHybridRetriever).
  • Operations manual (#53) — docs/operations-manual/ consolidates CI/CD, security, release, OAuth, TLS, E2E, tenant config, and performance into one ops surface; standalone OPERATIONS, PERFORMANCE, PRODUCTION_TLS, E2E, TENANT_CONFIG absorbed.
  • Eval refresh (#54) — eval_baseline_2026-05-19 → eval_baseline_v2; reframed to distinguish the shipped RAGAS baseline from the planned trajectory rig.
  • Security + roadmap refresh (#55) — dependency floor pinned in SECURITY.md; PRODUCT_ROADMAP.md marks Phase 6d shipped under v3.0.0; CHANGELOG batched.
  • First-visit polish + reviewer intros (#56, #57) — README, docs landing, Reviewer Guide, Case Study, and Architecture aligned around one canonical product introduction and capability table; reordered so product features and architecture lead instead of evidence/defensive framing; role-alignment moved to Case Study; collapsible primary nav on the docs site; scripts/check_docs.py extended to enforce canonical intro + capability rows so future drift fails tox -e docs.

Security & hygiene

  • Tool attribution guard workflow (PR #44)
  • Frontend dev-tool CVE remediation (vite, esbuild, vitest upgrades)
  • Python dependency bumps (authlib, langchain, streamlit)
  • Pydantic settings tightening + env template CI guard
  • CD workflow startup fix on qa / release (PR #49) — explicit permissions, secrets: inherit for reusable CI, locked Linux lightningcss optional natives

Architecture

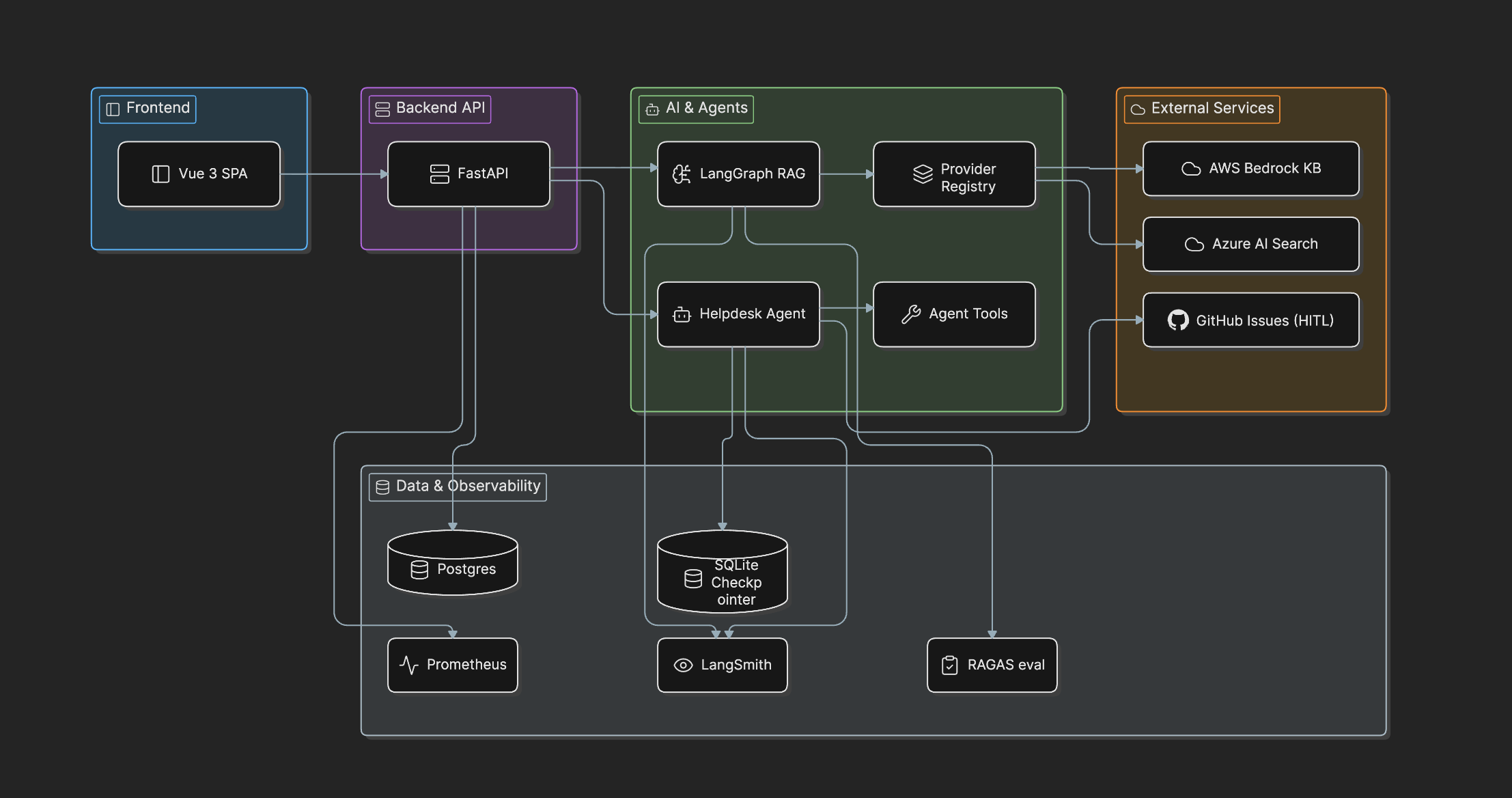

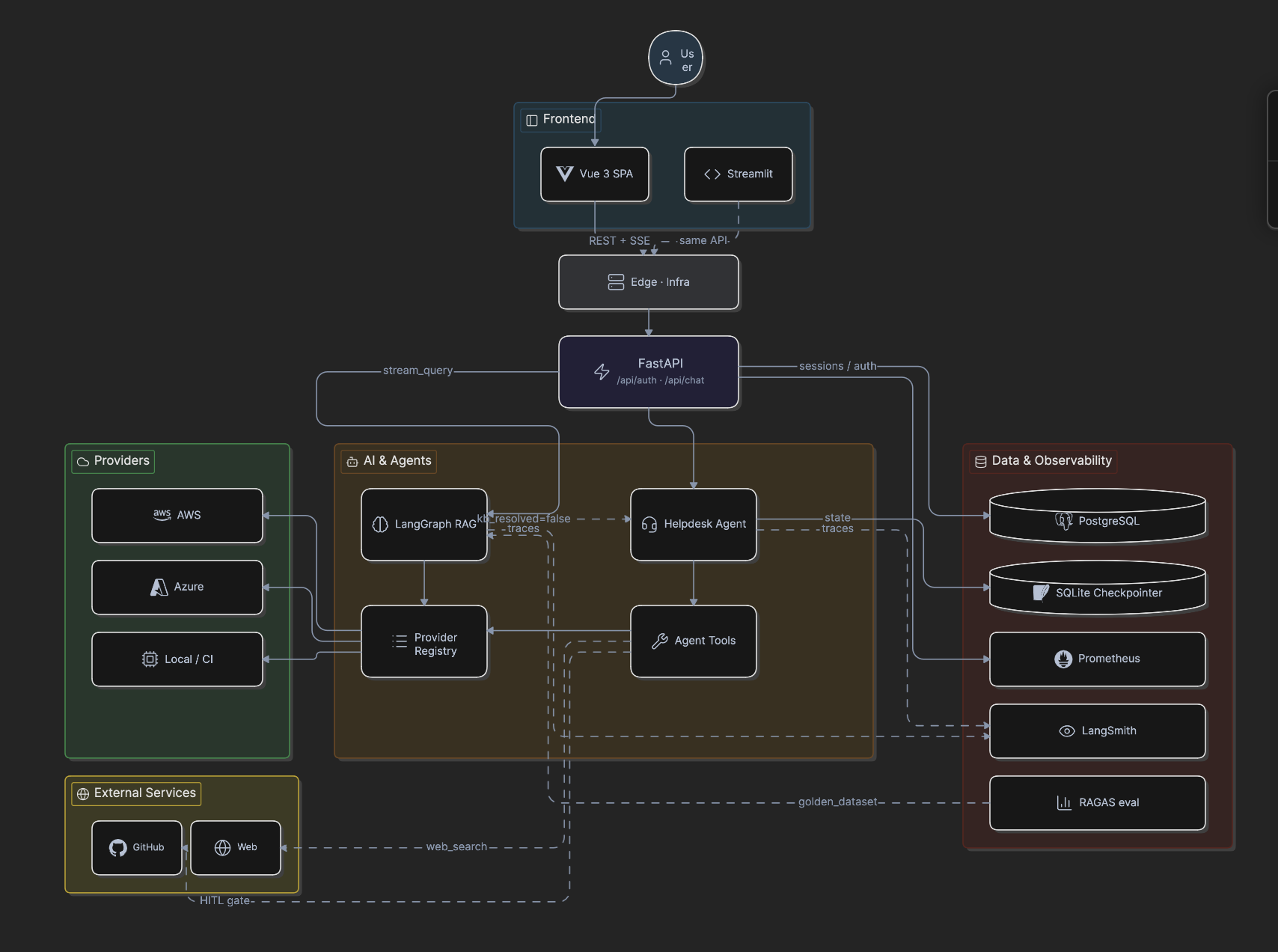

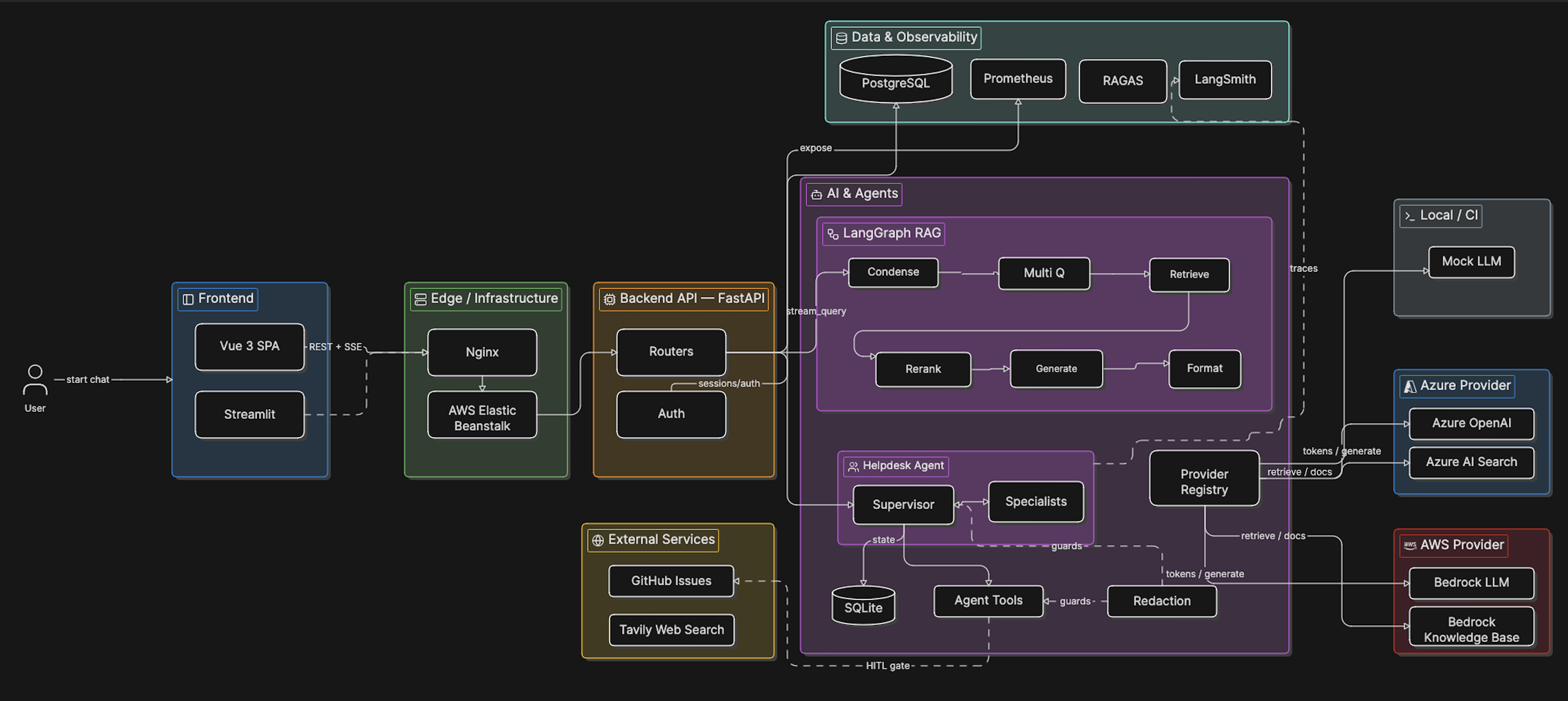

See architecture/v3/overview.png, detailed.png, and topology.png.

Known limits

  • Supervisor routing is deterministic (hand-coded), not yet LLM-driven — see AGENTIC_HELPDESK_REBUILD.md
  • SQLite checkpointing (Postgres migration planned in Phase 1b of the rebuild)
  • RAGAS context precision (~0.50) remains the main quality bottleneck

What's next

Agentic Helpdesk Rebuild — phased migration to LLM supervisor + specialists, Postgres checkpointing, real-event SSE, trajectory eval, and live campus router.

v2.0 — RAG platform transformation

Tag: v2.0 · Date: 2026-05-19

Major platform evolution from the upstream chabot fork into Campus RAG Assistant — a production-style enterprise RAG platform with Vue product UI, multicloud provider boundaries, LangGraph orchestration, RAGAS evaluation, and GitHub Actions CI/CD.

Product & UI

  • Vue 3 SPA — streaming chat, session sidebar, source panels (Sources + Content tabs), feedback, OAuth handoff
  • Opt-in web research — per-message toggle with visible disclaimer banner
  • GitHub OAuth — dev OAuth on API port with one-time handoff to Vue

RAG engineering

  • LangGraph pipeline — condense → multi-query → retrieve → rerank → generate → format
  • Dual RAG engines — RAG_ENGINE=chain (true SSE) and langgraph (observable stages)
  • Provider registry — AWS Bedrock KB, Azure AI Search + OpenAI, mock mode for CI/local
  • Multi-query + RRF fusion — improved retrieval coverage

Platform & ops

  • Alembic migrations — schema versioning for PostgreSQL
  • Prometheus metrics — /api/metrics, request IDs, structured logging
  • GitHub Actions CI/CD — tox (lint, backend, frontends) + gitleaks on every PR
  • MkDocs site — GitHub Pages documentation

Evaluation & quality

  • RAGAS golden-set harness — 10-question regression baseline
  • Phase 5 retrieval tuning — AWS context_recall improved to 0.80 (passes gate)
  • LangSmith traces — per-node spans on LangGraph path; waterfall screenshots in README

Documentation

  • Architecture diagrams (v1/v2), screenshot gallery, ADRs (001–004), portfolio case study, reviewer guide

Architecture

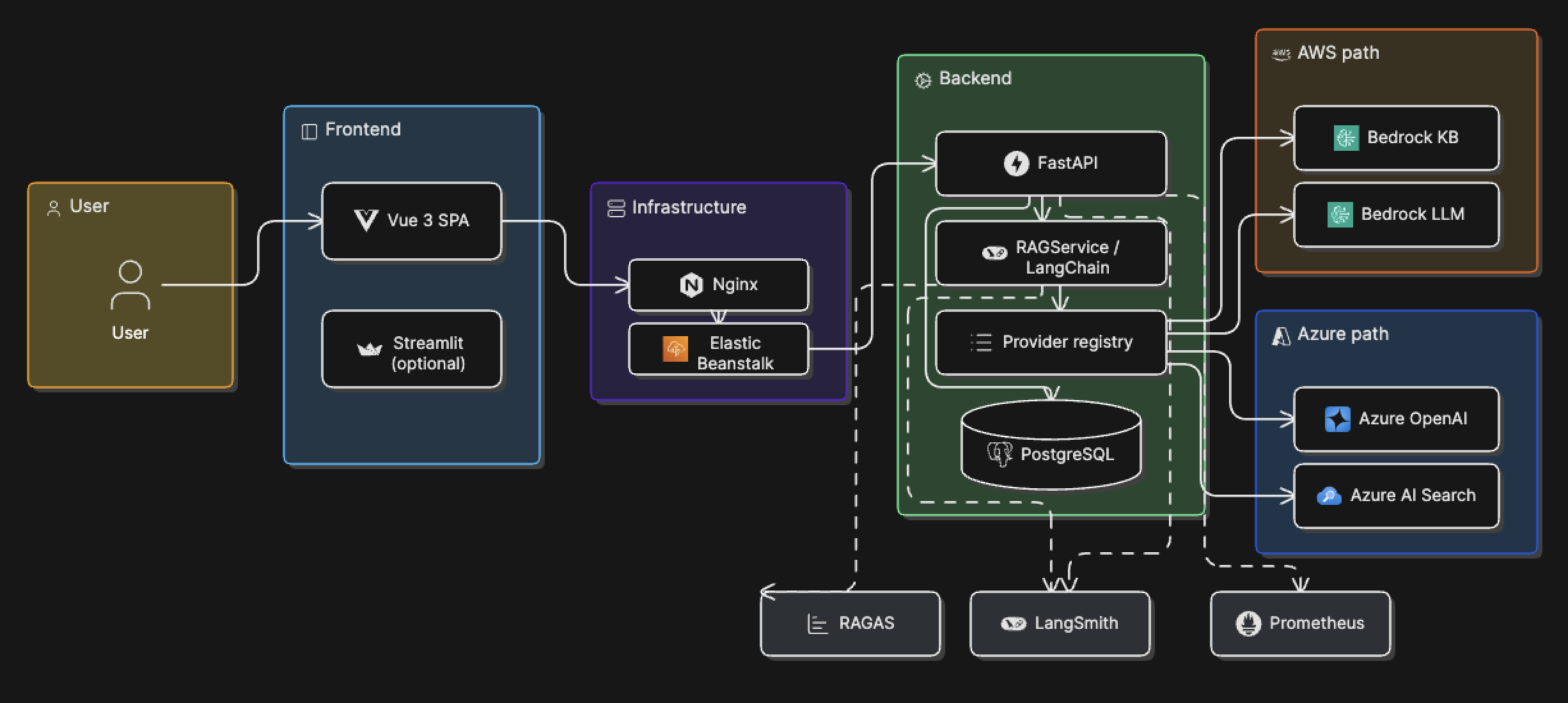

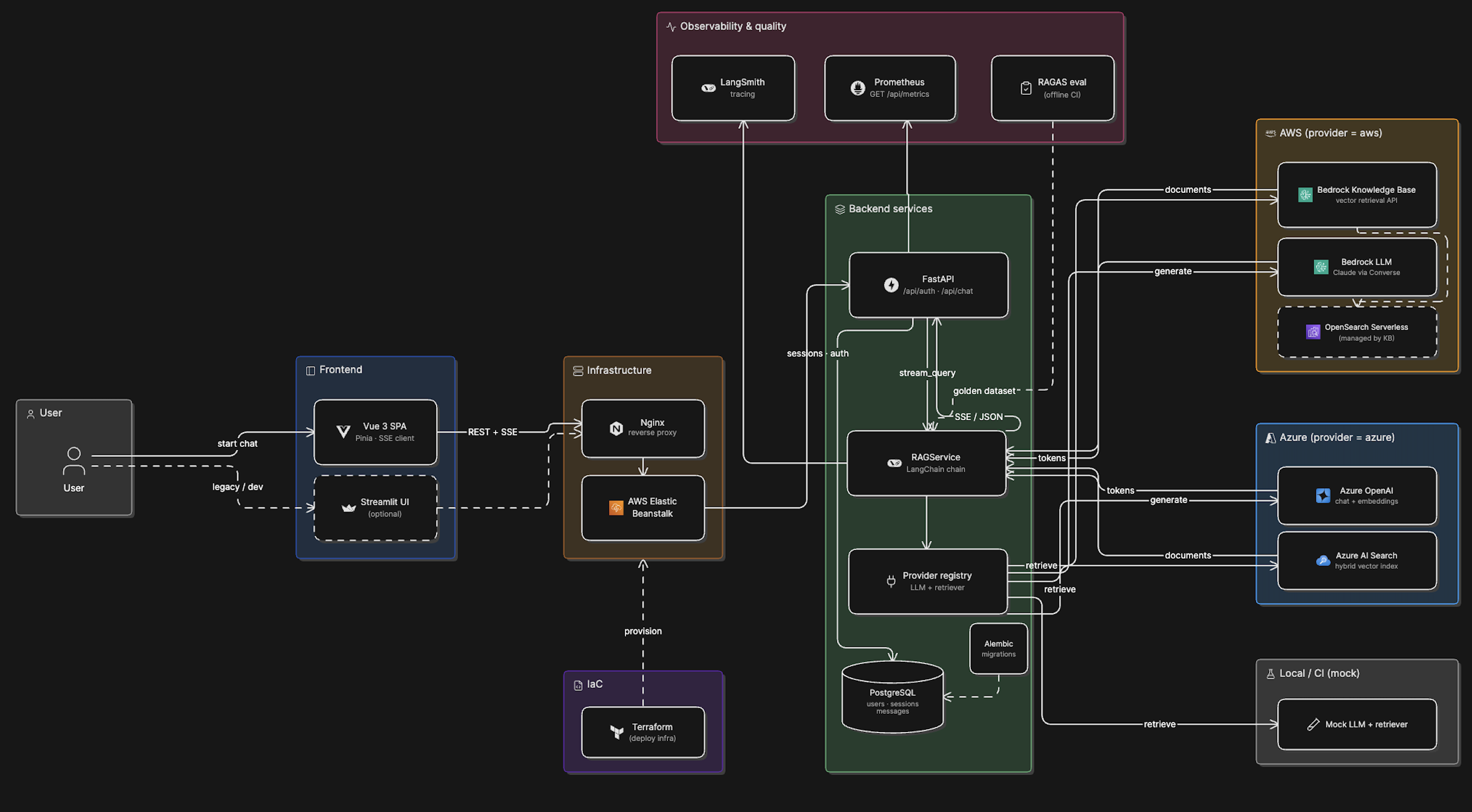

See architecture/v2/overview.png and detailed.png.

v1.0 — Upstream chabot baseline

Tags: v1.0 (release ladder), v0.1 (historical fork tag — same commit) · Date: 2024 (upstream fork point)

Initial fork of the UC Berkeley ETS chabot campus chatbot — a Streamlit + FastAPI + LangChain stack querying OpenSearch and Bedrock directly. Kept as the baseline reference for v2's platform transformation.

Highlights

  • Streamlit UI — single-page chat against a campus knowledge base
  • FastAPI backend — chat endpoints, PostgreSQL sessions
  • LangChain retrieval — direct OpenSearch vector search + Bedrock LLM
  • AWS deployment — Elastic Beanstalk + Nginx configs for co-hosting API and Streamlit
  • LangSmith — basic trace integration

Architecture

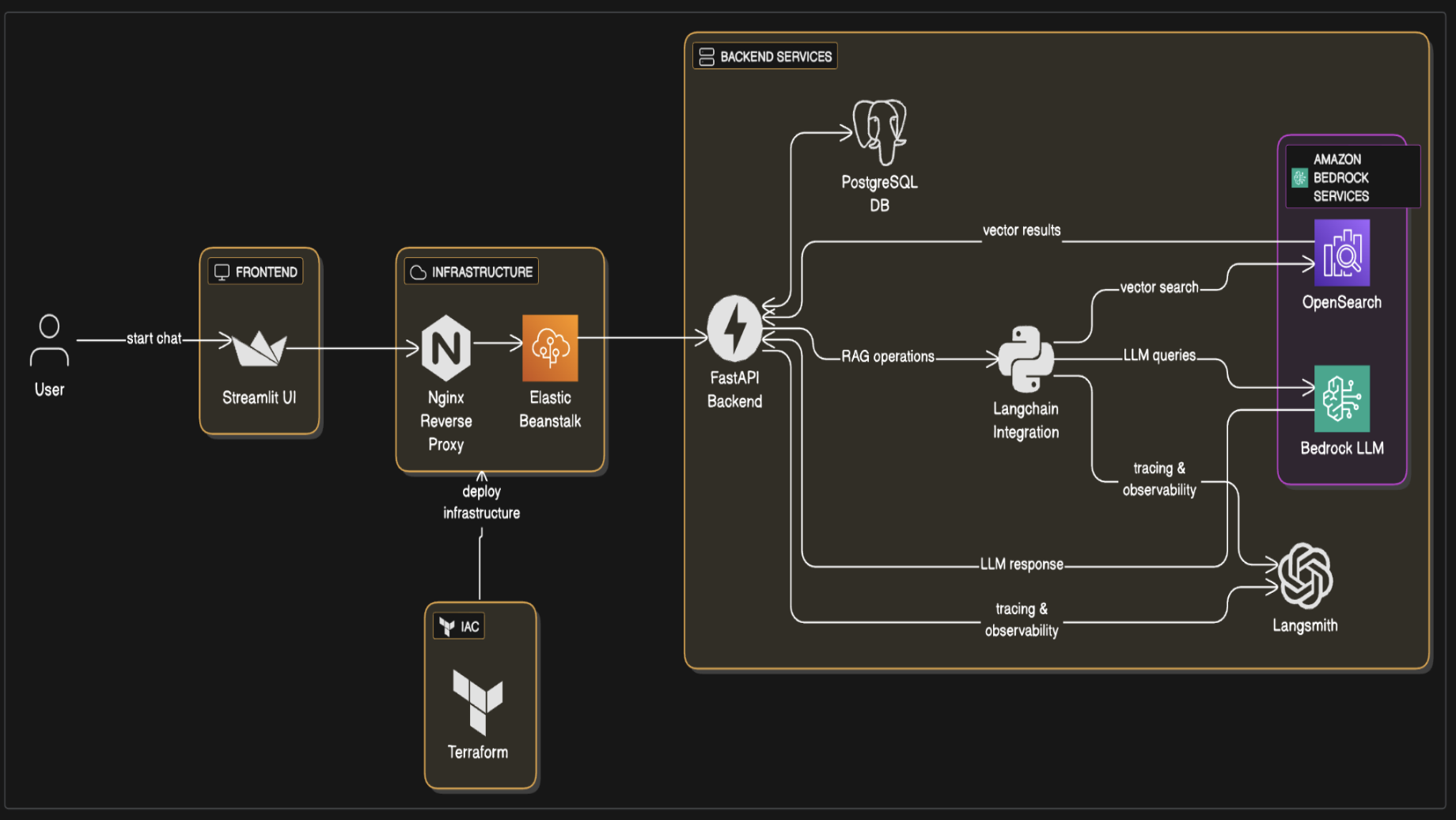

See architecture/v1/architecture.png for the upstream diagram.
